Clips · Pipe clamp

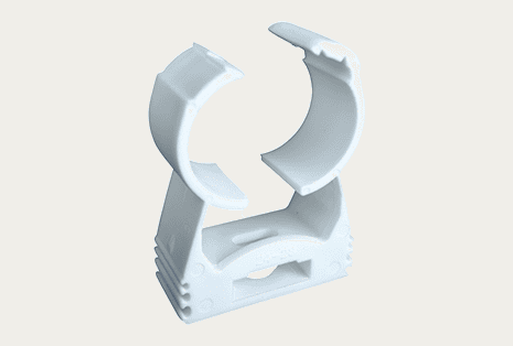

SW CLAMP
Clips for underfloor heating – made in Germany & Switzerland
Clip for pipe fixing on underfloor heating.
Winkler Technik SW clamp for easy and quick mounting of pipes with Ø 14 – 35.8 mm on walls or ceilings.
- 01Easy mounting on walls or ceilings
- 02Temperature resistant −30 °C to +85 °C
- 03SW 15 – SW 25 can be connected in series
Where can I get this product?
Winkler Technik supplies wholesalers, system providers and OEMs. Installers can source our products through their local distributor – contact us and we will refer you to a supplier near you.
Find a supplier
- SW 15
- Rohr-Ø 14,0 – 16,5 mm
- SW 17
- Rohr-Ø 16,5 – 19,5 mm
- SW 20
- Rohr-Ø 19,5 – 24,0 mm
Product video
SW CLAMP in action.
Specifications
Technical data.
SW CLAMP
- 01SW 15
- Rohr-Ø 14,0 – 16,5 mm
- 02SW 17
- Rohr-Ø 16,5 – 19,5 mm
- 03SW 20
- Rohr-Ø 19,5 – 24,0 mm
- 04SW 25
- Rohr-Ø 24,2 – 28,0 mm
- 05SW 32
- Rohr-Ø 31,2 – 35,8 mm
- 06Temperature range
- −30 °C bis +85 °C
Features
- 01Easy mounting on walls or ceilings
- 02Temperature resistant −30 °C to +85 °C
- 03SW 15 – SW 25 can be connected in series
- 04Accessories on request
More products
Related products.
01Star clip
Mounting Clip Starclips SC3/4
Winkler Technik Starclips SC 3/4 for wire mesh
Details →
02Setting tool

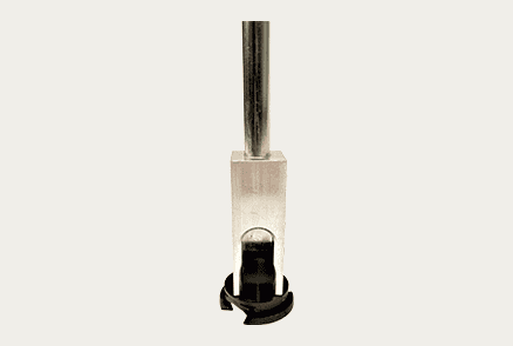

Clip wrench CLS
Setzgerät für Starclips SC3 und SC4 – ein Gerät für beide Größen.
Details →
03Anchor clip

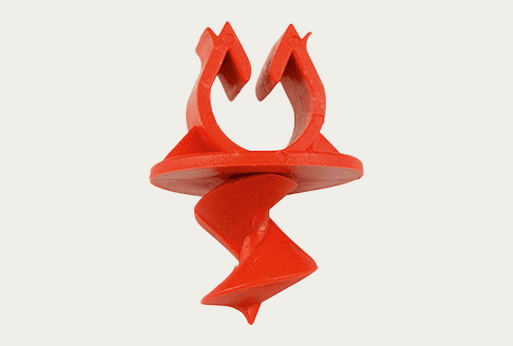

Anchor clips AC 1620
