What is a plastic bend support?

A bend support is a curved guide made of high-temperature-resistant plastic that routes the heating pipe at the heating circuit manifold and in tight bends. It keeps the bending radius in shape and protects the pipe from kinking.

Why does a heating pipe need a bend support at the manifold?

In tight bends the pipe is compressed and the flow rate drops. The bending radius should be at least five times the pipe diameter – the bend support maintains exactly this radius permanently, even with a warm pipe.

Which pipe diameters do bend supports cover?

Our WSK and WSKO variants cover all common pipe diameters, from heating circuit pipe to manifold pipe. They are simply clipped over the bent pipe – no tools needed.

Back to overview

Range · Plastic Bend Support

Plastic Bend Supports for Clean Pipe Routing at the Manifold.

Plastic bend supports for clean pipe routing at the heating manifold and in every bend – high-temperature-resistant material reliably holds the bending radius of 5 × D – supports that simply hold.

Material: High-temperature resistant, extremely stableBending radius: 5 × D, cleanly maintained16 sizes

Data sheet (PDF)

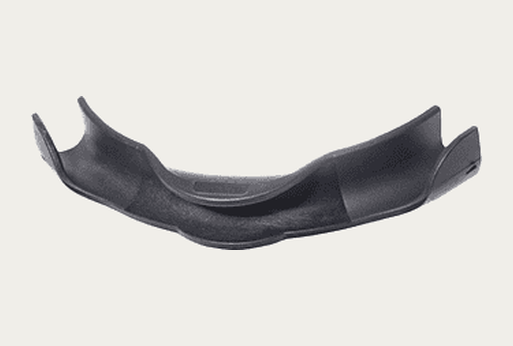

WSK 1618 – plastic bend support for underfloor heating by Winkler Technik — [ 1618 ]WSK 1618

#	Model	Pipe-Ø	Packaging	Weight/carton	Center fixing
01	WSK 812	8 – 10 mm	50 / bag · 500 / box	6,0 kg	—
02	WSKO 812	8 – 10 mm	10 / bag · 100 / box	1,6 kg	Yes
03	WSK 1017	10 – 14 mm	50 / bag · 500 / box	13,4 kg	—
04	WSKO 1017	10 – 14 mm	50 / bag · 400 / box	11,8 kg	Yes
05	WSK 1618	16 – 18 mm	50 / bag · 500 / box	17,9 kg	—
06	WSKO 1618	16 – 18 mm	50 / bag · 400 / box	15,8 kg	Yes
07	WSK 20	20 mm	50 / box	3,4 kg	—
08	WSKO 20	20 mm	50 / box	3,8 kg	Yes
09	WSK 23	23 mm	50 / box	3,3 kg	—
10	WSKO 23	23 mm	50 / box	3,7 kg	Yes
11	WSK 25	25 mm	50 / box	5,9 kg	—
12	WSKO 25	25 mm	50 / box	6,5 kg	Yes
13	WSK 29	29 mm	50 / box	5,5 kg	—
14	WSKO 29	29 mm	50 / box	5,6 kg	Yes
15	WSK 3235	32 – 35 mm	50 / box	9,5 kg	—
16	WSKO 3235	32 – 35 mm	50 / box	10,6 kg	Yes

Product Catalogue 2026

All products at a glance

U-rails, staples, clips, plastic bend supports and more – with all variants, dimensions and technical details.

Download cataloguePDF · 2.9 MB

Product video

Plastic Bend Support in action.

Personal consulting

Unsure which size fits?

16 sizesBending radius 5 × D

Get technical advice

Technical expertise

Plastic bend supports for clean pipe routing

Protection for every bend

At the manifold or in any tight bend the heating pipe needs to keep its bending radius permanently. Our plastic bend supports made of high-temperature-resistant plastic take care of exactly this – they hold the radius reliably and protect the pipe from kinking.

Available in several sizes for all common pipe diameters, robust yet light.

Easy to install

The bend support is simply clipped over the bent pipe and sits firmly. No tools are required, and installation speeds up noticeably – especially with many circuits at the manifold.

FAQ

Frequently asked questions

What is a plastic bend support?: A bend support is a curved guide made of high-temperature-resistant plastic that routes the heating pipe at the heating circuit manifold and in tight bends. It keeps the bending radius in shape and protects the pipe from kinking.
Why does a heating pipe need a bend support at the manifold?: In tight bends the pipe is compressed and the flow rate drops. The bending radius should be at least five times the pipe diameter – the bend support maintains exactly this radius permanently, even with a warm pipe.
Which pipe diameters do bend supports cover?: Our WSK and WSKO variants cover all common pipe diameters, from heating circuit pipe to manifold pipe. They are simply clipped over the bent pipe – no tools needed.
