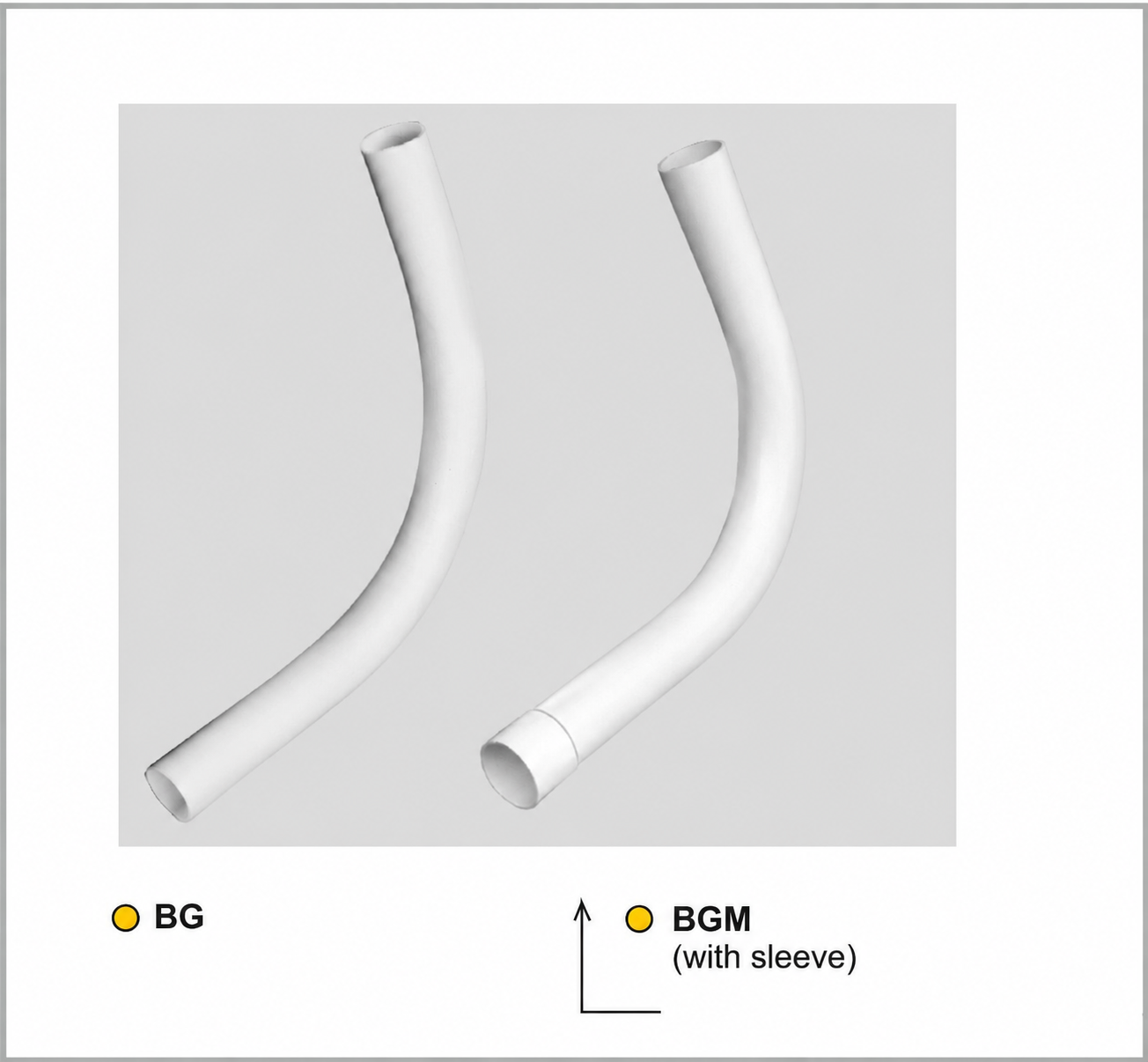

90° Elbow BG/BGM
Accessories & Specials for underfloor heating – made in Germany & Switzerland
Special accessory for underfloor heating.
The 90° Elbow BG / BGM (with sleeve) acts as a guide bend for plastic pipes in tight-radius areas such as manifold inlets. It protects the heating pipe from kinking and provides a clean, defined 90° transition.
- 01Clean 90° pipe redirection
- 02Protects against kinking in tight radii
- 03BGM variant with sleeve for secure connection
Winkler Technik supplies wholesalers, system providers and OEMs. Installers can source our products through their local distributor – contact us and we will refer you to a supplier near you.
Find a supplier
- Variant
- BG (bend) / BGM (with sleeve)
- For pipes Ø
- up to 18 / 20 / 22.2 mm
- Inner Ø
- 25 / 26 / 29 / 34 mm
90° Elbow BG/BGM in action.
Technical data.
90° Elbow BG/BGM
- 01Variant
- BG (bend) / BGM (with sleeve)
- 02For pipes Ø
- up to 18 / 20 / 22.2 mm
- 03Inner Ø
- 25 / 26 / 29 / 34 mm
- 04Outer Ø
- 28 / 32 / 37 mm
- 05Color
- white
- 06Packaging unit
- 50 or 100 pcs / box
- 01Clean 90° pipe redirection
- 02Protects against kinking in tight radii
- 03BGM variant with sleeve for secure connection
- 04For common pipe diameters up to 22.2 mm
